2011 Chevy Tahoe Upper Control Arm | Lifetime Warranty

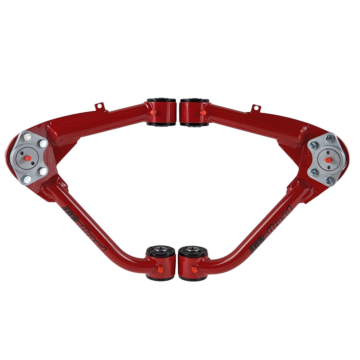

2011 Chevy Tahoe Upper Control Arm Engineering

The 2010 Tahoe control arm from JBA replaces factory components front to back with a rebuildable design that outlasts sealed OEM and aftermarket replacement arms. Each preassembled control arm ships with Max 90 Ball Joints CNC-machined from 4140 chromoly steel and EZ Lube Bushings featuring 8 individual grease ports with pressure relief valves. You grease the ball joint and bushings on your schedule, not when a sealed unit fails 30,000 miles into a lift kit.

The factory Chevrolet Tahoe front suspension geometry changes when you add a lift. Stock arms control camber and caster within OEM ride-height tolerances, but a 2-4-inch lift pushes ball-joint angles past safe operating limits and accelerates wear on sealed components. JBA arms restore proper suspension geometry while giving you **90-degree ball joint articulation** and **field-serviceable bushings** that extend component life in lifted and stock-height trucks.

Max 90 Ball Joint Design

The Max 90 Ball Joint provides 90-degree articulation through a stud design that eliminates the binding common in lifted GMT900 platform trucks like the 2011 model year Tahoe, Silverado, and Cadillac Escalade. Each joint is CNC-machined from 4140 chromoly steel, not cast or forged from softer alloys used in budget replacement parts. The boot is rebuildable, the stud is greasable, and the housing threads into the upper control arm body so you replace the joint without replacing the entire arm.

Sealed ball joints from brand name and aftermarket accessories suppliers fail because dirt intrusion and heat break down the factory grease pack. You can't add grease, you can't inspect wear, and you can't rebuild the joint. JBA joints ship with a grease zerk and a boot you can replace in your driveway. A jungle fleet operator in Central America runs JBA arms on 14 Tahoe-based trucks in 95-degree heat and 100% humidity. He greases every 5,000 miles and hasn't replaced a joint in 4 years.

EZ Lube Bushing System

EZ Lube Bushings feature 8 grease ports and pressure relief valves that push fresh grease through the bushing while forcing out contaminants. You grease the bushings at the same interval you grease the ball joint. The polyurethane insert is rebuildable and the steel sleeve is press-fit, so you service the bushing without cutting the arm or pressing out a bonded rubber unit that requires a hydraulic press and a machine shop.

Factory rubber bushings in the 2011 Tahoe front suspension deflect under load and crack when exposed to oil, heat, and trail debris. Sealed polyurethane bushings from other brands bind when dirt works past the outer seal. JBA bushings stay clean because you flush them with grease every 5,000 to 10,000 miles depending on your driving conditions. Off-road use, towing, and lift kits all shorten service intervals, but the bushing itself doesn't wear out.

Lifetime Structural Warranty Coverage

Every JBA upper control arm ships with a **lifetime structural warranty** that covers the arm body, ball joint housing threads, and bushing sleeve against failure for as long as you own the truck. The warranty does not cover wear items like ball joint boots, bushing inserts, or grease zerks, but those components are rebuildable and available as individual service parts. If the arm body cracks or the threads strip under normal use, JBA replaces the arm.

This warranty has backed JBA arms since 2003 when the brand built the original aftermarket upper control arm for the Jeep Liberty. The same engineering principles apply to GMT900 platform trucks including the 2011 Tahoe, 2011 Silverado, and Cadillac Escalade models. You're buying a rebuildable suspension component, not a disposable replacement part.

Lift Kit and Stock Height Applications

JBA arms work with 0 to 6 inch lift kits on the 2011 Chevrolet Tahoe. Stock-height trucks benefit from the rebuildable ball joint and greasable bushings. Lifted trucks regain proper camber and caster angles while gaining the articulation needed for off-road use. If you're running a 4 inch lift with factory upper arms, you're wearing out ball joints and tires faster than necessary.

The arms ship preassembled with ball joints installed and bushings pressed in. You unbolt the factory arm, bolt in the JBA arm, and set your alignment. No modification to the frame or suspension is required. Installation time for a pair runs 2 to 3 hours, depending on your experience level and whether you're also replacing the lower control arm or other front suspension components.

Material and Finish Specifications

Each arm body is TIG-welded from DOM steel tubing and finished in JBA Red powder coat. The powder coat is applied after welding and before final assembly to protect the steel from corrosion in wet and salt-exposed environments. The finish is not cosmetic. It's a functional coating that extends the life of the arm body in climates where road salt and humidity accelerate rust.

Max 90 Ball Joints are zinc-plated after machining. EZ Lube Bushing sleeves are steel with a black oxide finish. All grease fittings are standard SAE sizes, so you can replace them at any auto parts store if a zerk gets damaged during installation or trail use.

Shop Upper Control Arms for Your Tahoe

JBA upper control arms fit the 2011 Chevrolet Tahoe and other GMT900 platform trucks including the Silverado 1500, GMC Sierra 1500, and Cadillac Escalade. Each pair ships ready to install with Max 90 Ball Joints, EZ Lube Bushings, and all necessary hardware. Replacement ball joints, bushing kits, and grease fittings are available as individual service parts when you're ready to rebuild.

Shop preassembled upper control arms backed by a lifetime structural warranty. Built in the US since 2003.
