JBA Upper Control Arms for lifted Jeep Grand Cherokee/Dodge Durango 2011-2015
Spacer Lift, or Leveling kit
These kits cause the upper arms to angle downward toward the ball joints. The Leveling kit or strut lift removes the factory rake angle by lifting the front level with the rear of the vehicle.
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts
Spring lift kit
These kits cause the upper arms to angle downward toward the ball joints. Spring kits remove the factory rake angle and lift the rear of the vehicle about 1.5" - 2.5"
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts
Cradle Drop Kit
These kits cause the upper arms to angle downward toward the ball joints. cradle drop lift, cross-member drop, or drop bracket lift kit
- This style kit relocates the lower control arms on the front of the vehicle by using a drop bracket. These brackets offset the lower control mounting holes by 4", 6", or 8". These kits also include longer steering knuckles to fit within the bigger gap between the upper and the lower ball joints.
Spring lift kit
Spring kits on the front struts
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts
Example: 4" cradle drop lift with a 2" spring/coil over lift = 6" lift kit. 6" cradle drop lift with a 2" spring/coil over lift = 8" lift kit. When the mounting holes are offset by 4" and the kit is a 6" kit, the other 2 inches are made up from the strut lift or spring lift.
- Weight: 16 lbs
- Type: 1026 DOM A513-5 Domestic Tubing 1.06" OD x 0.75" ID
- Install time: 1-3 Hours

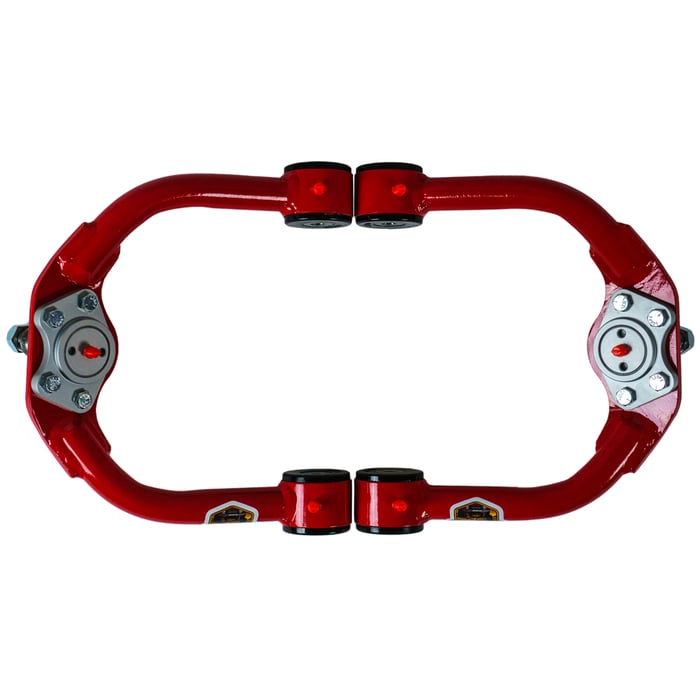

JBA Upper Control Arms are assembled and ready to bolt into your Jeep!
American-made steel tubing, red powder-coat finish, replaceable ball joints, 2 grease ports for the JBA EZ lube bushings, and 1 grease port for the ball joint. Ball joints are mounted on an angle to line up with the steering knuckle.
Note: Left and Right UCAs are not symmetrical.Â
Fitment
Year | Make | Model |
2011 - 2015 | Jeep | Lifted Dodge Durango |
2011 - 2015 | Dodge | Lifted Grand Cherokee |
Does your Jeep wander from one side of the road to the other after you installed your lift kit?
The JBA upper control arms will fix your problem! No more driving with your hands gripping tightly on the steering wheel to keep your Jeep in the center of the road at 55 miles per hour. Our upper control arms have built-in caster.
What is more caster?
"More caster" is the top ball joint moved back toward the cab and the lower ball joint moved forward away from the cab. The angle between the two ball joints is the caster. We have moved the upper ball joint back to give the alignment tech the ability to move the lower ball joint forward. So with the lift kit, you get between 3 & 4.5 degrees of caster, giving your Jeep the ideal handling at high speeds.
How easy are the JBA arms to maintain?
The JBA upper control arms have 3 grease fittings on each arm. These grease fittings should be greased every 3000 to 5000 miles or when you change your engine oil. If you take your Jeep in mud pits or across streams, grease the ball joint after you are done playing.
What is an EZ lube bushing?
JBA has a patent on our control arm bushings. The EZ lube bushings have grease ports with a check valve. When you pump grease in the grease ports it builds up pressure and flows all around the ports in the bushing. When the ports are full the excess grease flows out over the check valves on the flange of the bushings. With the JBA EZ Lube bushing, you do NOT need to loosen the mounting bolts to release the grease pressure. These bushings will save you about 30 minutes of maintenance! The bushings are Synthetic Elastomer.
What is Synthetic Elastomer?
Synthetic Elastomer is a long-chained polymer with many urethane constituents. Over the years the formulation has evolved to yield stronger, yet softer compounds ideal for on and off-road applications. As the compound advanced to yield higher tensile strength, elasticity, and dynamic load capacity, JBA uses the bushing to help aid and tune suspension geometry and they will not squeak like polyurethane bushings.
What grease should I use in the JBA UCAs?
We recommend MOLY EP LITHIUM GREASE. Mobilgrease XHP™ 222 Special grease is an extended service lithium complex grease intended for a wide variety of applications and severe operating conditions. This grease is designed to outperform conventional products by applying cutting-edge, proprietary, lithium complex manufacturing technology. It is formulated to provide excellent high-temperature performance with superb adhesion, structural stability, and resistance to water contamination. This grease has a high level of chemical stability and offers excellent protection against rust and corrosion. This grease features high dropping points and a maximum recommended operating temperature of 140º C (284°F). Mobilgrease XHP 222 Special grease available in NLGI grades 2 or 3 with an ISO VG 220 base oil viscosity.
Mobilgrease XHP 222 Special grease is designed for a wide range of applications including the industrial, automotive, construction, and marine sectors. Their performance features make them ideal for operating conditions including high temperature, water contamination, shock loading, and extended re-lubrication operations. Mobilgrease XHP 222 Special is an extreme pressure grease fortified with 0.75% molybdenum disulfide that protects from wear under conditions pivoting and other conditions that lead to loss of oil film.
What ball joint do we use in the control arms?
We have CNC machines to make our ball joints out of 4140 steel. The ball joints have 90 degrees range of motion. The ball and socket are protected from the elements with a 100% sealed boot. We Cerakote the outside of the housing to protect it from the elements. There is a grease fitting on the top center of the ball joint where we recommend using a grease gun and adding 3 pumps of grease every time you change your oil and once you are done playing in mud pits and creeks.
Why not use the Uni-Ball joint?
The Uni-Ball is designed for offroad racing applications, these vehicles are disassembled and they replace worn parts on the vehicle after every race. In other words, the Uni-Ball is not designed for the everyday weekend warrior who uses their vehicle for regular transportation more than they go off-road. The open design of the Uni-Ball allows dust, dirt, salt, and other debris to enter the component and wear it out prematurely. The JBA Ball Joint, on the other hand, has a sealed construction that keeps debris and the elements out, extending the life of the joint and allowing you to use it in your daily vehicle. The uni-ball only has 33 degrees range of motion vs the JBA ball joint with 90 degrees.
