JBA Upper Control Arms for 2004 - 2020 Ford F150 (1 to 3.5 inch lift)

$590.00

Sku#: JBA-20.00.HC.EZ

Pre-Assembled Kit - fits lift type

Spring Lift or Leveling Kit [1 to 3.5-inch lift] Spring Lift with Cradle Drop Kit

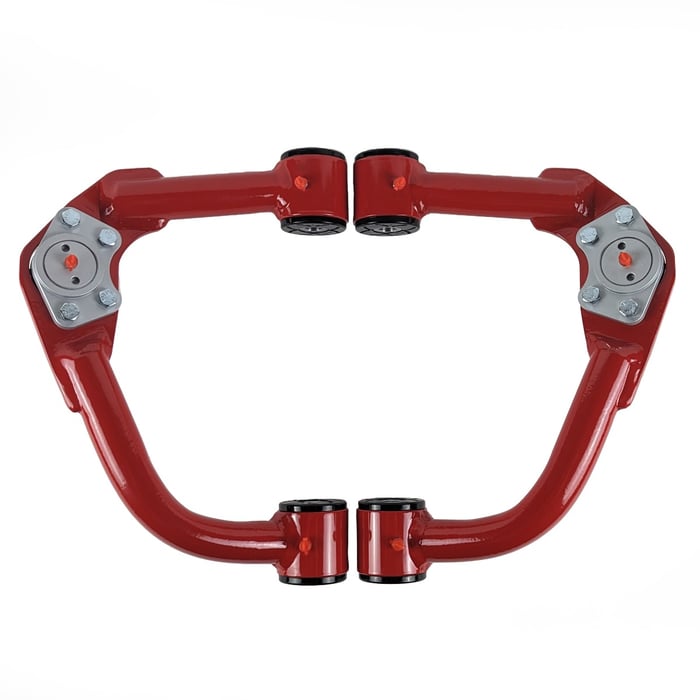

The JBA Upper A-Arms were designed for a Ford F150, Expedition, and Lincoln Navigator with a spring lift or leveling kit from 1 to 4 inches.

In Stock Ready to Ship

Typically ships within 24 hours on business days

Qty

What included

1 Right UCA
1 Left UCA
2 JBA Max 90 ball joints
8 synthetic elastomer a-arm bushings
4 steel bushing sleeves
Installation Instructions
2 JBA sticker 6 x 1

Product Specs

Weight: 19 lbs
Type: 1026 DOM A513-5 Domestic Tubing 1.313" OD x 1.00" ID
Install time: 1- 3 hours

Details

Enhance Your Ride: Discover JBA Upper A-Arms for Your Ford

Revolutionize your Ford F150, Expedition, or Navigator's performance with our game-changing JBA upper control arms. Tailored explicitly for spring lifts or leveling kits, these robust American-made steel control arms are designed to handle 1 to 4 inches of lift, delivering a seamless balance of performance and poise.

Why Choose JBA UCAs for Your Ford?

Unmatched Engineering: Our upper control arms are lovingly crafted to fit and last. The impeccable red powder-coated finish shields against corrosion, and the burly steel tubing, measuring a solid 0.156-inch wall and 1.313-inch diameter, guarantees enduring strength.
Superior Bushings: Say goodbye to squeaks with our synthetic elastomer bushings, embodying the JBA EZ lube bushing™ system (U.S. Patent No. 11,293,511). Equipped with quad grease ports and pressure relief valves, these advanced bushings guarantee continuous lubrication without excess pressure - effortless maintenance paired with enduring performance.
Pinnacle of Mobility: We all want the kind of motion that takes on turbulent terrains with finesse, don't we? The JBA Max 90 Ball Joint™ outshines its competitors with a staggering 90-degree range, handling hardcore off-roading without breaking a sweat.
Ease of Use: Convenience is our middle name. Outfitting your Ford has never been easier, thanks to our pre-assembled UCAs, ready to bolt on. Revolutionize your off-road experience without an entire weekend lost in the garage – it's a promise.
Tailored Fitment: We've done our homework so you can hit the road without worry. Our UCAs are a perfect match for Ford F150 (2004-2020), Ford Expedition (2006-2022), and Lincoln Navigator (2006-2022)

Steered Clear of the Ordinary Control Arms

We purposefully selected the JBA Max 90 Ball Joints™ over uni-balls for a reason. Our choice stems from recognizing the significance of a completely sealed design, which prevents debris accumulation, ensures gradual wear, and enables an enhanced range of motion. This choice embodies cutting-edge control and unmatched durability.

The Perfect Pairing

For a flawless fit, team up with our recommended wheel and tire size, 17" x 8.5" with 4.75" backspace, and tires sized at 285/70R17. Your Ford will not only look stunning but also perform without a hitch.

JBA UCAs: Built for the Bold

Don't restrict your Ford to the ordinary upper control arms. Upgrade to JBA UCAs with built-in caster, top-tier US materials, and an enthusiastic thumbs-up for your off-road escapades. Manufactured in the USA with a relentless focus on quality and durability, JBA Ford upper control arms are the arms you've been seeking.

Feel free to reach out with any control arm questions – we're here to assist you in gearing up for greatness. Together, we'll take on the roads less traveled with confidence. Remember, it's not just about the destination; it's about the joy of the drive. And with JBA upper control arms, every drive is a joy.

The JBA Value Pack

JBA Max 90 Ball Joints™
Patented JBA EZ Lube Bushings™
JBA Lifetime Warranty
JBA 360-day Return Policy
JBA Installation Book
JBA Stickers

Note: Using ball joint spacers voids the JBA Money Back and Replacement Warranty.

Email: [email protected]

Fitment

Year	Make	Model
2006 - 2022	Ford	Expedition
2004 - 2020	Ford	F150
2006 - 2022	Lincoln	Navigator

Fits lift type

Spring Lift or Leveling Kit [1 to 3.5-inch lift]
Spacer Lift, or Leveling kit

These kits cause the upper arms to angle downward toward the ball joints. The Leveling kit or strut lift removes the factory rake angle by lifting the front level with the rear of the vehicle.
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts
Spring lift kit

These kits cause the upper arms to angle downward toward the ball joints. Spring kits remove the factory rake angle and lift the rear of the vehicle about 1.5" - 2.5"
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts
Spring Lift with Cradle Drop Kit
Cradle Drop Kit

These kits cause the upper arms to angle downward toward the ball joints. cradle drop lift, cross-member drop, or drop bracket lift kit
- This style kit relocates the lower control arms on the front of the vehicle by using a drop bracket. These brackets offset the lower control mounting holes by 4", 6", or 8". These kits also include longer steering knuckles to fit within the bigger gap between the upper and the lower ball joints.
Spring lift kit

Spring kits on the front struts
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts
Example: 4" cradle drop lift with a 2" spring/coil over lift = 6" lift kit. 6" cradle drop lift with a 2" spring/coil over lift = 8" lift kit. When the mounting holes are offset by 4" and the kit is a 6" kit, the other 2 inches are made up from the strut lift or spring lift.

Maintenance

Every 3,000-5,000 miles: Grease the ball joint with lithium complex grease fortified with moly, until you see the boots swell (3-4pumps). Grease the arm bushings with the same grease until you see grease pushing out from the EZ Lube ports.

Jba Setting New Standards

Ball Joint Construction

See why the JBA ball joint works best for the weekend warrior.

90°Range of Motion

The JBA Ball Joint gives you 90 degrees range of motion.

JBA EZ Lube Bushings

Introducing our proprietary EZ Lube bushings! Patented Grease channels and pressure relief valves*

EZ LUBE Bushing U.S. Patent No. 11,293,511 issued April 5th 2022

Product faqs

How easy are the JBA arms to maintain?

The JBA upper control arms have 3 grease fittings on each arm. These grease fittings should be greased every 3000 to 5000 miles or when you change your engine oil. If you play in mud pits and streams we recommend greasing the ball joint when you are done.

What is an EZ lube bushing?

JBA has a patent on our control arm bushings. The EZ lube bushings have grease ports with a check valve. When you pump grease in the grease ports it builds up pressure and flows all around the ports in the bushing. When the ports are full the excess grease flows out over the check valves on the flange of the bushings. With the JBA EZ Lube bushing, there is no need to loosen the mounting bolts to release the grease pressure. These bushings will save you about 30 minutes of maintenance! The bushings are Synthetic Elastomer.

What is Synthetic Elastomer?

Synthetic Elastomer is a long-chained polymer with many urethane constituents. Over the years the formulation has evolved to yield stronger, yet softer compounds ideal for on and off-road applications. As the compound advanced to yield higher tensile strength, elasticity, and dynamic load capacity, JBA uses the bushing to help aid and tune suspension geometry and they will not squeak like polyurethane bushings.

What grease should I use in the JBA UCAs?

We recommend MOLY EP LITHIUM GREASE. Mobilgrease XHP™ 222 Special grease is an extended service lithium complex grease intended for a wide variety of applications and severe operating conditions. This grease is designed to outperform conventional products by applying cutting-edge, proprietary, lithium complex manufacturing technology. It is formulated to provide excellent high-temperature performance with superb adhesion, structural stability, and resistance to water contamination. This grease has a high level of chemical stability and offers excellent protection against rust and corrosion. This grease features high dropping points and a maximum recommended operating temperature of 140º C (284°F). Mobilgrease XHP 222 Special grease available in NLGI grades 2 or 3 with an ISO VG 220 base oil viscosity.
Mobilgrease XHP 222 Special grease is designed for a wide range of applications including the industrial, automotive, construction, and marine sectors. Their performance features make them ideal for operating conditions including high temperature, water contamination, shock loading, and extended re-lubrication operations. Mobilgrease XHP 222 Special is an extreme pressure grease fortified with 0.75% molybdenum disulfide that protects from wear under conditions pivoting and other conditions that lead to loss of oil film.

What ball joint do we use in our control arms?

We have CNC machines to make ball joints out of 4140 steel. The ball joints have 90 degrees range of motion. The ball and socket are protected from the elements with a 100% sealed boot. We Cerakote the outside of the housing to protect it from the elements. There is a grease fitting on the top center of the ball joint where we recommend using a grease gun and adding 3 pumps of grease every time you change your oil and once you are done playing in mud pits and streams.

Reasons we do not use the uni-ball joint...

The Uni-Ball is designed for offroad racing applications, these vehicles are disassembled and they replace worn parts on the vehicle after every race. In other words, the Uni-Ball is not designed for the everyday weekend warrior who uses their vehicle for regular transportation more than they go off-road. The open design of the Uni-Ball allows dust, dirt, salt, and other debris to enter the component and wear it out prematurely. The JBA Ball Joint, on the other hand, has a sealed construction that keeps debris and the elements out, extending the life of the joint and allowing you to use it in your daily vehicle. The uni-ball only has 33 degrees range of motion vs the JBA ball joint with 90 degrees.
