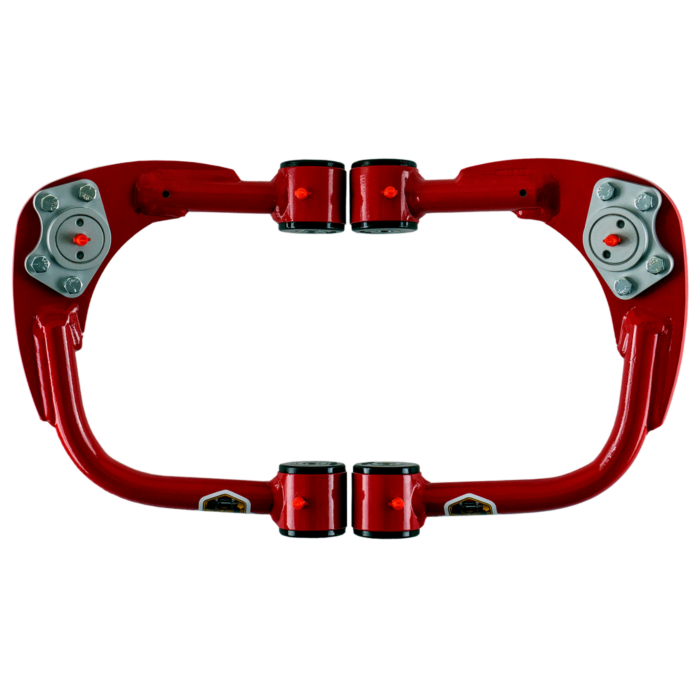

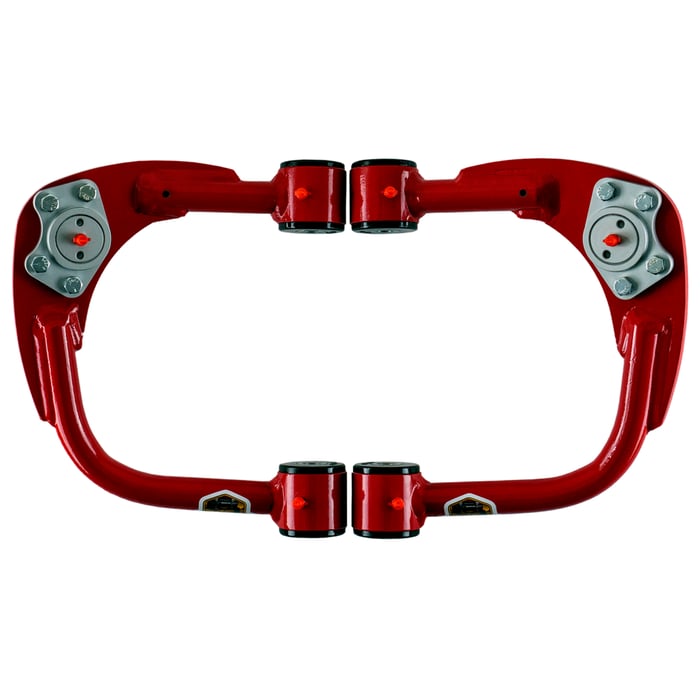

JBA STD High Caster Upper Control Arms for Lexus GX470, Lexus GX460 2003-2023 (1 to 3.5 inch lift)

JBA STD High Caster Upper A-arms for 2005-14 Toyota

$558.00

Sku#: JBA-7.0.HC.EZ-4R-GX

Pre-Assembled Kit - fits lift type

Spring Lift or Leveling Kit [1 to 3.5-inch lift]

The JBA Upper Control Arms are compatible with MOST spring lifts and leveling kits on the market today! Works with spring lifts up to 4 inches.

In Stock Ready to Ship - High Demand

Typically ships within 24 hours on business days

Qty

What included

1 Right UCA
1 Left UCA
2 JBA Max 90 ball joints
8 synthetic elastomer a-arm bushings
1 Bushing washer kit
4 steel bushing sleeves
Installation Instructions
2 JBA sticker 6 x 1

Product Specs

Weight: 18 lbs
Type: 1026 DOM A513-5 Domestic Tubing 1.06" OD x 0.75" ID
Install time: 1-3 Hours

Details

JBA STD High Caster Upper Control Arms fits

Lexus GX460 2010-2023
Lexus GX470 2003-2009

The JBA Value Pack

JBA Max 90 Ball Joints™
Patented JBA EZ Lube Bushings™
JBA Lifetime Warranty
JBA 365-day Return Policy
JBA Installation Book
JBA Stickers

JBA Upper Control Arms are preassembled and ready to bolt into your Lexus!

American-made steel tubing, red powder-coat finish, replaceable ball joints, 2 grease ports for the JBA EZ lube bushings, and 1 grease port for the ball joint. Ball joints are mounted on an angle to line up with the steering knuckle.

Note: Left and Right UCAs are not symmetrical.

Learn more

Fitment

Year	Make	Model
2010 - 2023	Lexus	GX460
2003 - 2009	Lexus	GX470

Fits lift type

Spring Lift or Leveling Kit [1 to 3.5-inch lift]
Spacer Lift, or Leveling kit

These kits cause the upper arms to angle downward toward the ball joints. The Leveling kit or strut lift removes the factory rake angle by lifting the front level with the rear of the vehicle.
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts
Spring lift kit

These kits cause the upper arms to angle downward toward the ball joints. Spring kits remove the factory rake angle and lift the rear of the vehicle about 1.5" - 2.5"
- Coil Spring spacer
- On-top strut spacers
- Preload Collar
- Bilstein 5100 Series, adjustable struts
- Bilstein 6100 Series, adjustable struts
- Using lift springs on struts
- Higher-rate strut springs
- Adjustable coil over struts

Maintenance

Every 3,000-5,000 miles: Grease the ball joint with lithium complex grease fortified with moly, until you see the boots swell (3-4pumps). Grease the arm bushings with the same grease until you see grease pushing out from the EZ Lube ports.

Jba Setting New Standards

Ball Joint Construction

See why the JBA ball joint works best for the weekend warrior.

90°Range of Motion

The JBA Ball Joint gives you 90 degrees range of motion.

JBA EZ Lube Bushings

Introducing our proprietary EZ Lube bushings! Patented Grease channels and pressure relief valves*

EZ LUBE Bushing U.S. Patent No. 11,293,511 issued April 5th 2022

Product Videos

Unboxing Video By FJ Cruiser Channel

Short Install Video By FJ Cruiser Channel

Product faqs

Does your Lexus drift from one side of the road to the other after you install a lift kit?

The JBA upper control arms will fix your problem! No more driving with your hands gripping tightly on the steering wheel to keep your vehicle in the center of the road at 55 miles per hour. Our upper control arms have 3 degrees of built-in caster.

What is more caster?

More caster is the top ball joint moved back toward the cab and the lower ball joint moved forward away from the cab the angle between the two ball joints is the caster. We have moved the upper ball joint back to give the alignment tech the ability to move the lower ball joint forward. So with the lift kit, you get between 3 & 4.5 degrees caster. Giving the vehicle ideal handling offroading and on the highway!

How easy are the JBA arms to maintain on your Lexus?

The JBA upper control arms have 3 grease fittings on each arm. These grease fittings should be greased every 3000 to 5000 miles or when you change your engine oil. If you take your Tacoma in mud pits or across streams with the vehicle, grease the ball joint after you are done for the day.

What is an EZ lube bushing?

JBA has a patent on our control arm bushings. They have grease ports with a check valve. When you pump grease in the grease builds up pressure and flows all around the ports in the bushing. When the ports are full the excess grease flows out over the check valves on the flange of the bushings. With the JBA EZ Lube bushing, there is no need to loosen the mounting bolts to release the grease pressure. These bushings will save you about 30 minutes of maintenance! The bushings are made of Synthetic Elastomer.

What is synthetic elastomer?

Synthetic Elastomer is a long-chained polymer with many urethane constituents. Over the years the formulation has evolved to yield stronger, yet softer compounds ideal for on and off-road applications. As the compound advanced to yield higher tensile strength, elasticity, and dynamic load capacity, JBA uses the bushing to help aid and tune suspension geometry and they will not squeak like polyurethane bushings.

What grease should I use in the JBA UCAs?

We recommend MOLY EP LITHIUM GREASE. Mobilgrease XHP™ 222 Special grease is an extended-service lithium complex grease intended for various applications and severe operating conditions. These greases were designed to outperform conventional products by applying cutting-edge, proprietary, lithium complex manufacturing technology. It is formulated to provide excellent high-temperature performance with superb adhesion, structural stability, and resistance to water contamination. This grease has high chemical stability and offers exceptional protection against rust and corrosion. This grease features high dropping points and a maximum recommended operating temperature of 140º C (284°F). Mobilgrease XHP 222 Special grease is available in NLGI grades 2 or 3 with an ISO VG 220 base oil viscosity.

Mobilgrease XHP 222 Special grease is designed for various applications, including the industrial, automotive, construction, and marine sectors. Its performance features make it ideal for operating conditions including high temperature, water contamination, shock loading, and extended re-lubrication operations. Mobilgrease XHP 222 Special is an extreme pressure grease fortified with 0.75% molybdenum disulfide that provides protection from wear under pivoting and other conditions that lead to loss of oil film.

What ball joint do we use in the control arms?

We have CNC machines to make our ball joints out of 4140 steel. The ball joints have 90 degrees range of motion. A 100% sealed boot protects the ball and socket from the elements. We Cerakote the outside of the housing to protect it from the elements. There is a grease fitting on the top center of the ball joint we recommend using a grease gun and adding 3 pumps of grease in the ball joint every time you change your oil. If you drive through creaks and in mud pits, we would recommend greasing the ball joint after you are done.

Why don't we use the uni-ball joint?

The Uni-Ball was designed for offroad racing applications, these vehicles are disassembled and they replace worn parts on the vehicle after every race. In other words, the Uni-Ball is not designed for the everyday weekend warrior who uses their vehicle for regular transportation more than they go off-road. The open design of the Uni-Ball allows dust, dirt, salt, and other debris to enter the component and wear it out prematurely. The JBA Ball Joint, on the other hand, has a sealed construction that keeps debris and the elements out, extending the life of the joint and allowing you to use it in your daily driven vehicle. The uni-ball only has 33 degrees range of motion, and the JBA ball joint has 90 degrees.

What Wheel & Tire Combo works with JBA-7.0.HC.EZ?

We moved the guest out more on the JBA UCAs to get more strut clearance and down travel, with doing that there is interference with oversize tires on factory wheels.)

Additional information

JBA UCAs give you MORE!

More spring clearance is more suspension travel
More Caster
More articulation, See JBA vs Uniball
More Traction on the trails
HD vs STD arms

Tire sizes that work well with the JBA-7.0.HC.EZ UCAs on factory wheels, Wheel offset chart at bottom of this page.

265/75R16 tire 31.6" x 10.4" on factory wheels
275/70R17 tire 32.2" x 10.8" on factory wheels
255/75R17 tires 32.1" x 10" on factory wheels
275/65R18 tires 32.1" x 10.8" on factory wheels
245/75R17 tires 31.5" x 9.6" on factory wheels
Any tire that is 32.2" diameter and smaller there is no fitment problem.

To check your tire size go to https://tiresize.com/calculator/
To check your wheel size and backspace go to https://www.wheel-size.com/

The charts below will help you see what Tacoma wheel and tire combo will clear the JBA-7.0.HC.EZ UCAs.
Note: The critical dimensions are tire diameter, any tire over 32.5", the width of the tire, width of the wheel & wheel backspace or offset. This is only tire a-arm clearance, you may still need to do body mount chop and clearance of the wheel wells and front bumper.

What you need from your Tacoma, tire width, wheel width & wheel backspace
Wheel offset chart at bottom of this page.

Tacoma Oversize tires

33 x 12.5" wide tire:
12.5" wide tire, if the wheel is 7" wide, you need a 3.25" backspace or smaller to clear the JBA ucas.
12.5" wide tire, if the wheel is 7.5" wide, you need a 3.50" backspace or smaller to clear the JBA ucas.
12.5" wide tire, if the wheel is 8" wide, you need a 3.75" backspace or smaller to clear the JBA ucas.
12.5" wide tire, if the wheel is 8.5" wide, you need a 4.00" backspace or smaller to clear the JBA ucas.
12.5" wide tire, if the wheel is 9" wide, you need a 4.25" backspace or smaller to clear the JBA ucas.
12.5" wide tire, the above will have .225” tire clearance to the JBA arms at full lock of the steering wheel, with that wheel and tire setup. If you need a smaller backspace a wheel spacer is needed, most common spacer is 1.25" thick. This is the only tire to a-arm clearance, you may still need to do body mount chop and clearance of the wheel wells and front bumper.

315/70 R17 (34.4" x 12.4") 12.4" wide tire:
12.4" wide tire, if the wheel is 7" wide, you need a 3.50" backspace or smaller to clear the JBA ucas.
12.4" wide tire, if the wheel is 7.5" wide, you need a 3.75" backspace or smaller to clear the JBA ucas.
12.4" wide tire, if the wheel is 8" wide, you need a 4.00" backspace or smaller to clear the JBA ucas.
12.4" wide tire, if the wheel is 8.5" wide, you need a 4.25" backspace or smaller to clear the JBA ucas.
12.4" wide tire, if the wheel is 9" wide, you need a 4.50" backspace or smaller to clear the JBA ucas.
12.4" wide tire, the above will have .025” tire clearance to the JBA arms at full lock of the steering wheel, with that wheel and tire setup. If you need a smaller backspace a wheel spacer is needed, most common spacer is 1.25" thick. This is only tire to a-arm clearance, you may still need to do body mount chop and clearance the wheel wells and front bumper.

295/75 R16 (33.4" x 11.6") 11.6" wide tire:
11.6" wide tire, if the wheel is 7.0" wide, you need a 3.75" backspace or smaller to clear the JBA ucas.
11.6" wide tire, if the wheel is 7.5" wide, you need a 4.00" backspace or smaller to clear the JBA ucas.
11.6" wide tire, if the wheel is 8" wide, you need a 4.25" backspace or smaller to clear the JBA ucas.
11.6" wide tire, if the wheel is 8.5" wide, you need a 4.50" backspace or smaller to clear the JBA ucas.
11.6" wide tire, if the wheel is 9" wide, you need a 4.75" backspace or smaller to clear the JBA ucas.
11.6" wide tire, the above will have .175” tire clearance to the JBA arms at full lock of the steering wheel, with that wheel and tire setup. If you need a smaller backspace a wheel spacer is needed, most common spacer is 1.25" thick. This is only tire to a-arm clearance, you may still need to do body mount chop and clearance the wheel wells and front bumper.

285/70 R17 (32.7" x 11.2"), BFG K02s at 285/75 R16 (32.8" x 11.2") 11.2" wide tire:
11.2" wide tire, if the wheel is 7.0" wide, you need a 4.00" backspace or smaller to clear the JBA ucas.
11.2" wide tire, if the wheel is 7.5" wide, you need a 4.25" backspace or smaller to clear the JBA ucas.
11.2" wide tire, if the wheel is 8" wide, you need a 4.50" backspace or smaller to clear the JBA ucas.
11.2" wide tire, if the wheel is 8.5" wide, you need a 4.75" backspace or smaller to clear the JBA ucas.
11.2" wide tire, if the wheel is 9" wide, you need a 5.00" backspace or smaller to clear the JBA ucas.
11.2" wide tire, the above will have .125” tire clearance to the JBA arms at full lock of the steering wheel, with that wheel and tire setup. If you need a smaller backspace a wheel spacer is needed, most common spacer is 1.25" thick. This is only tire to a-arm clearance, you may still need to do body mount chop and clearance the wheel wells and front bumper.

275/70 R18 (33.2" x 10.8") 10.8" wide tire:
10.8" wide tire, if the wheel is 7.0" wide, you need a 4.25" backspace or smaller to clear the JBA ucas.
10.8" wide tire, if the wheel is 7.5" wide, you need a 4.50" backspace or smaller to clear the JBA ucas.
10.8" wide tire, if the wheel is 8.0" wide, you need a 4.75" backspace or smaller to clear the JBA ucas.
10.8" wide tire, if the wheel is 8.5" wide, you need a 5.00" backspace or smaller to clear the JBA ucas.
10.8" wide tire, if the wheel is 9" wide, you need a 5.25" backspace or smaller to clear the JBA ucas.
10.8" wide tire, the above will have .075” tire clearance to the JBA arms at full lock of the steering wheel, with that wheel and tire setup. If you need a smaller backspace a wheel spacer is needed, most common spacer is 1.25" thick. This is only tire to a-arm clearance, you may still need to do body mount chop and clearance the wheel wells and front bumper.

255/85 R16 (33.10" x 10") 10.0" wide tire:
10.0" wide tire, if the wheel is 7.0" wide, you need a 4.50" backspace or smaller to clear the JBA ucas.
10.0" wide tire, if the wheel is 7.5" wide, you need a 4.75" backspace or smaller to clear the JBA ucas.
10.0" wide tire, if the wheel is 8.0" wide, you need a 5.00" backspace or smaller to clear the JBA ucas.
10.0" wide tire, if the wheel is 8.5" wide, you need a 5.25" backspace or smaller to clear the JBA ucas.
10.0" wide tire, if the wheel is 9" wide, you need a 5.5" backspace or smaller to clear the JBA ucas.
10.0" wide tire, the above will have .225” tire clearance to the JBA arms at full lock of the steering wheel, with that wheel and tire setup. If you need a smaller backspace a wheel spacer is needed, most common spacer is 1.25" thick. This is only tire to a-arm clearance, you may still need to do body mount chop and clearance the wheel wells and front bumper.

Wheel Width	Wheel Backspace in Inches
		3.25	3.50	3.75	4.00	4.25	4.50	4.75	5.00	5.25	5.50	5.75
	5.0	6	12	19	25	32	38	44	51	57	63	69
	5.5	0	6	12	19	25	32	38	44	51	57	63
	6.0	-6	0	6	12	19	25	32	38	44	51	57
	6.5	-12	-6	0	6	12	19	25	32	38	44	51
	7.0	-19	-12	-6	0	6	12	19	25	32	38	44
	7.5	-25	-19	-12	-6	0	6	12	19	25	32	38
	8.0	-32	-25	-19	-12	-6	0	6	12	19	25	32
	8.5	-38	-32	-25	-19	-12	-6	0	6	12	19	25
	9.0	-44	-38	-32	-25	-19	-12	-6	0	6	12	19
	9.5	-51	-44	-38	-32	-25	-19	-12	-6	0	6	12
	10.0	-57	-51	-44	-38	-32	-25	-19	-12	-6	0	6
	10.5	-63	-57	-51	-44	-38	-32	-25	-19	-12	-6	0
	11.0	-69	-63	-57	-51	-44	-38	-32	-25	-19	-12	-6
	11.5	-76	-69	-63	-57	-51	-44	-38	-32	-25	-19	-12
	12.0	-83	-76	-69	-63	-57	-51	-44	-38	-32	-25	-19
