Our Vehicles at JBA Offroad

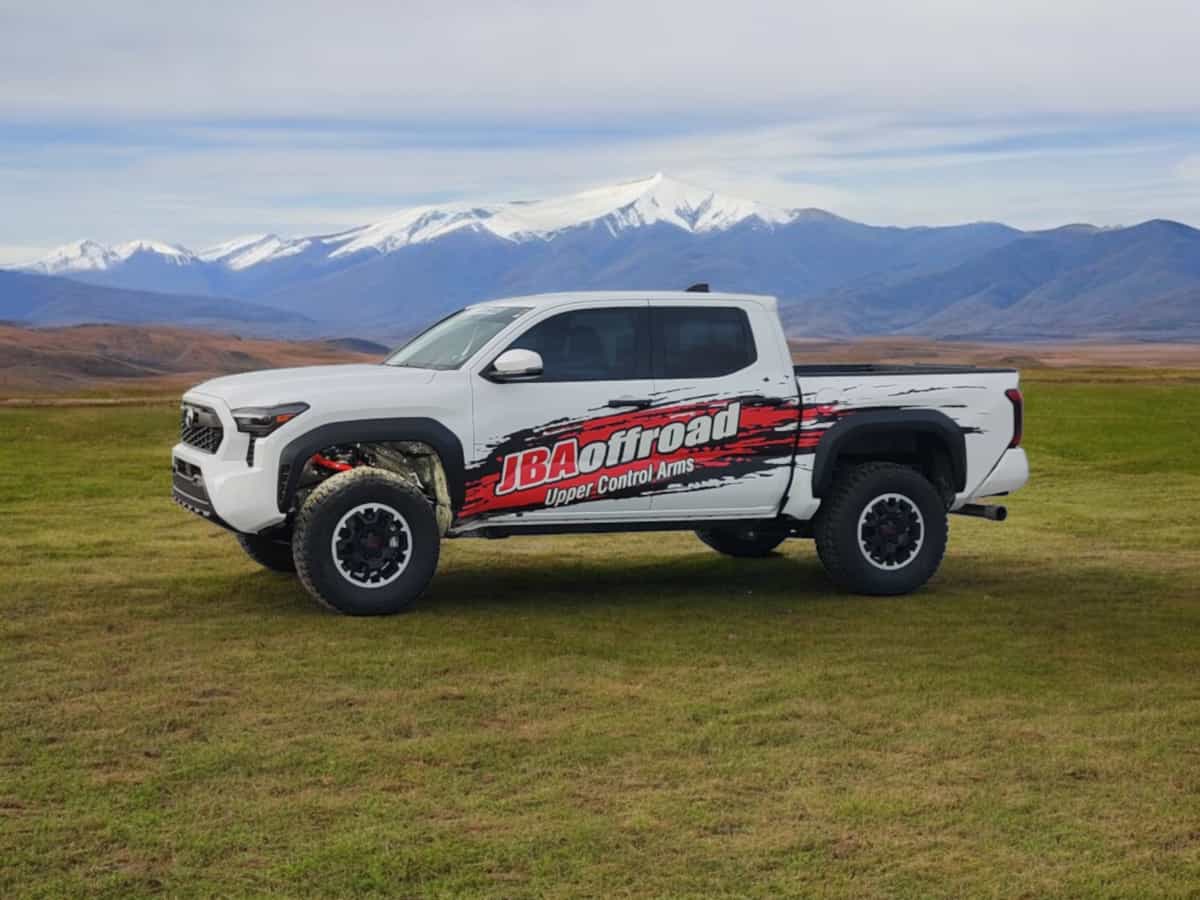

Toyota Tacoma 2024
Tacoma TRD Offroad
- JBA Upper Control Arms
- 2.50" puck lift on front struts
- 1.50" puck lift on rear springs
- Mickey Thompson Baja Boss SUV Tires 285/70R17 on factory wheels

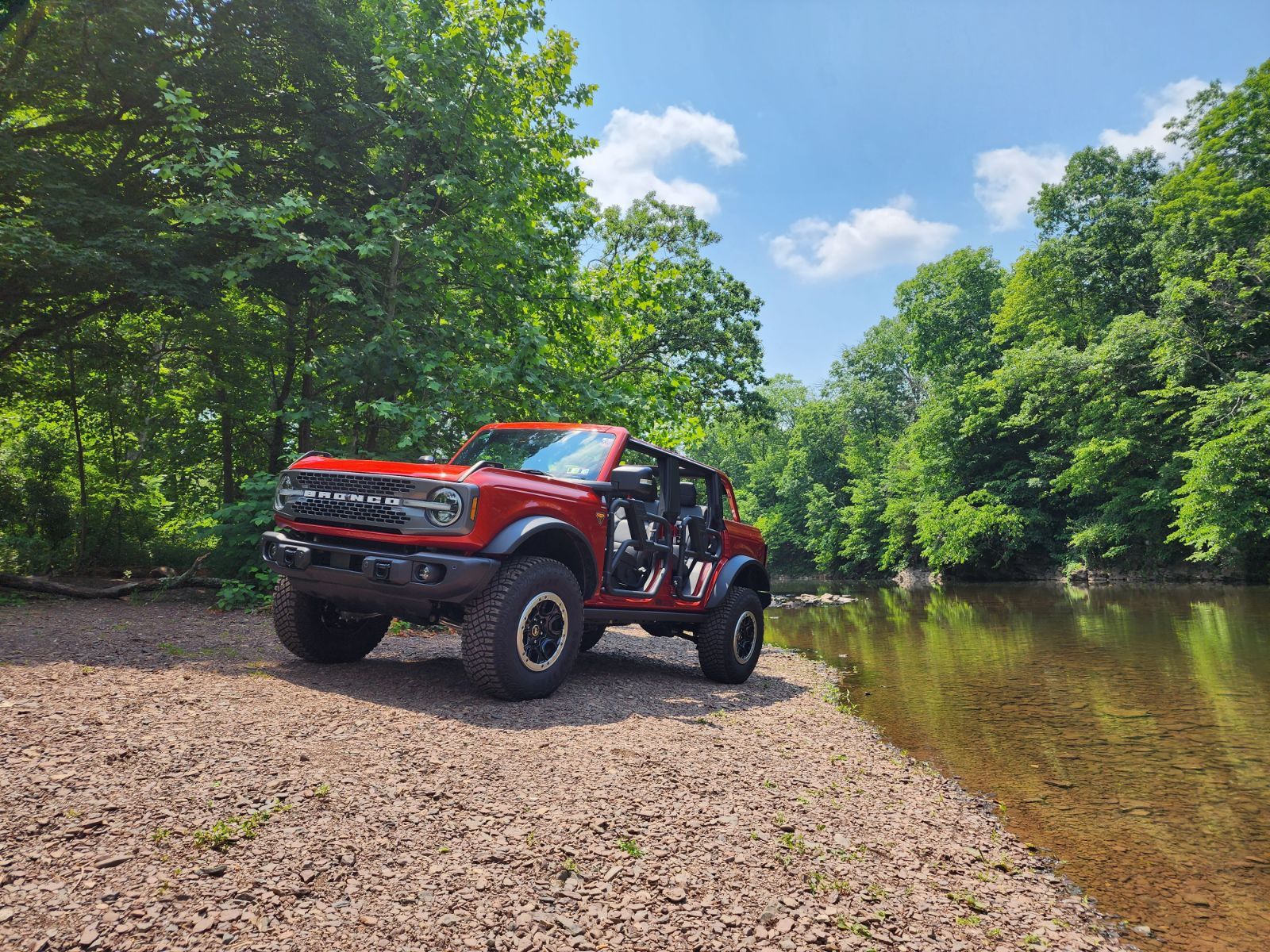

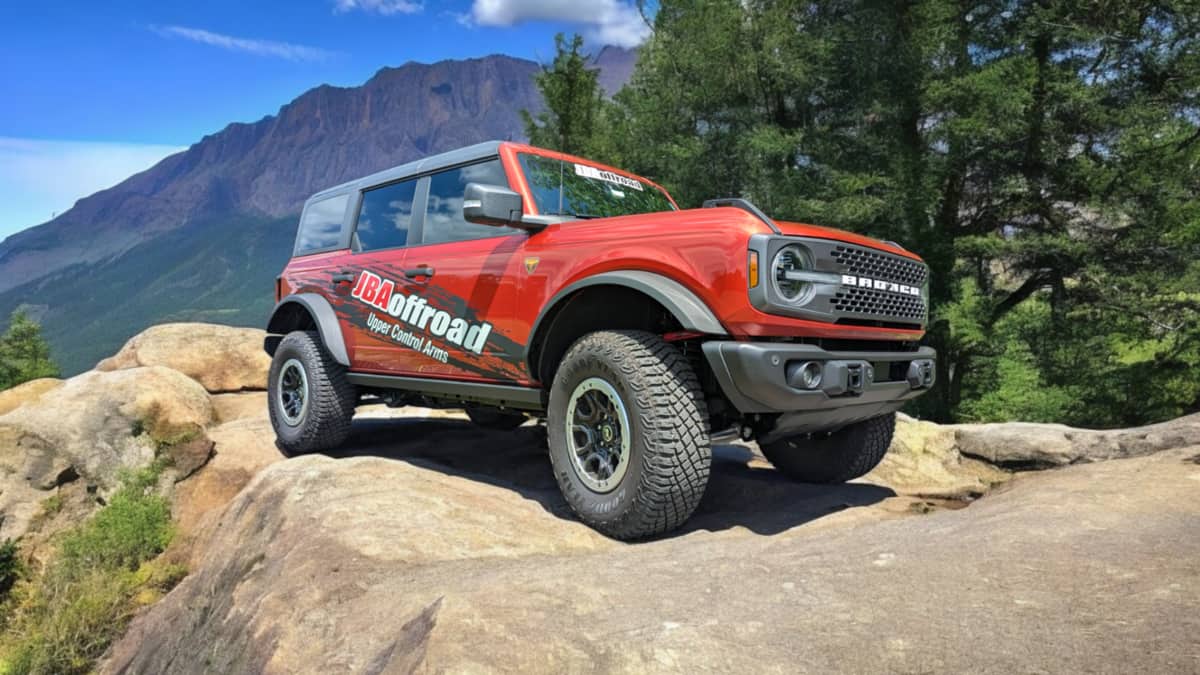

Ford Bronco 2022
Badlands 2.7L v6 Sasquatch package
- JBA Upper Control Arms
- Bilstein 6100 struts and springs 2.50"
- Bilstein 6100 rear shocks 2.50"

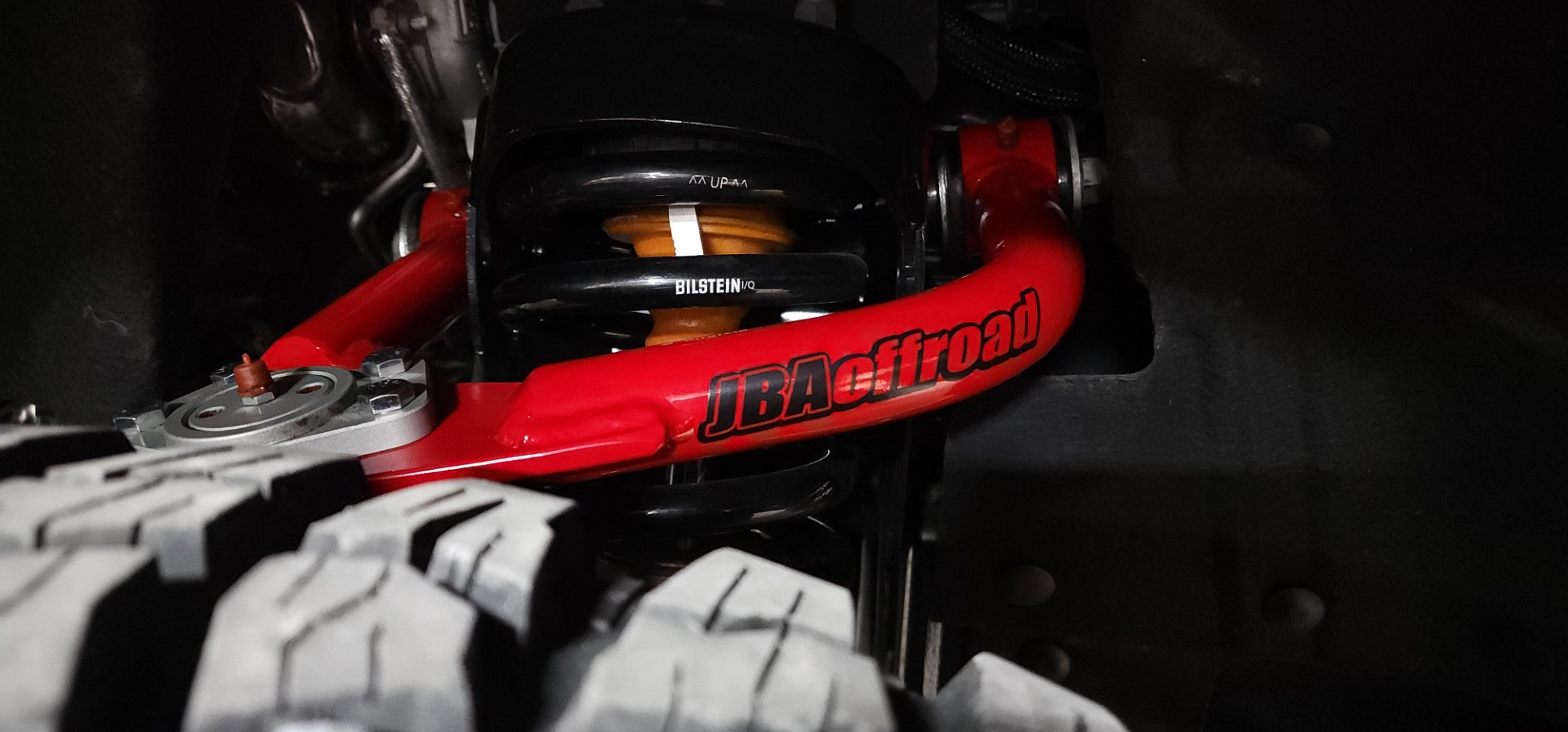

JBA Offroad upper control arms for the Lifted Ford Bronco

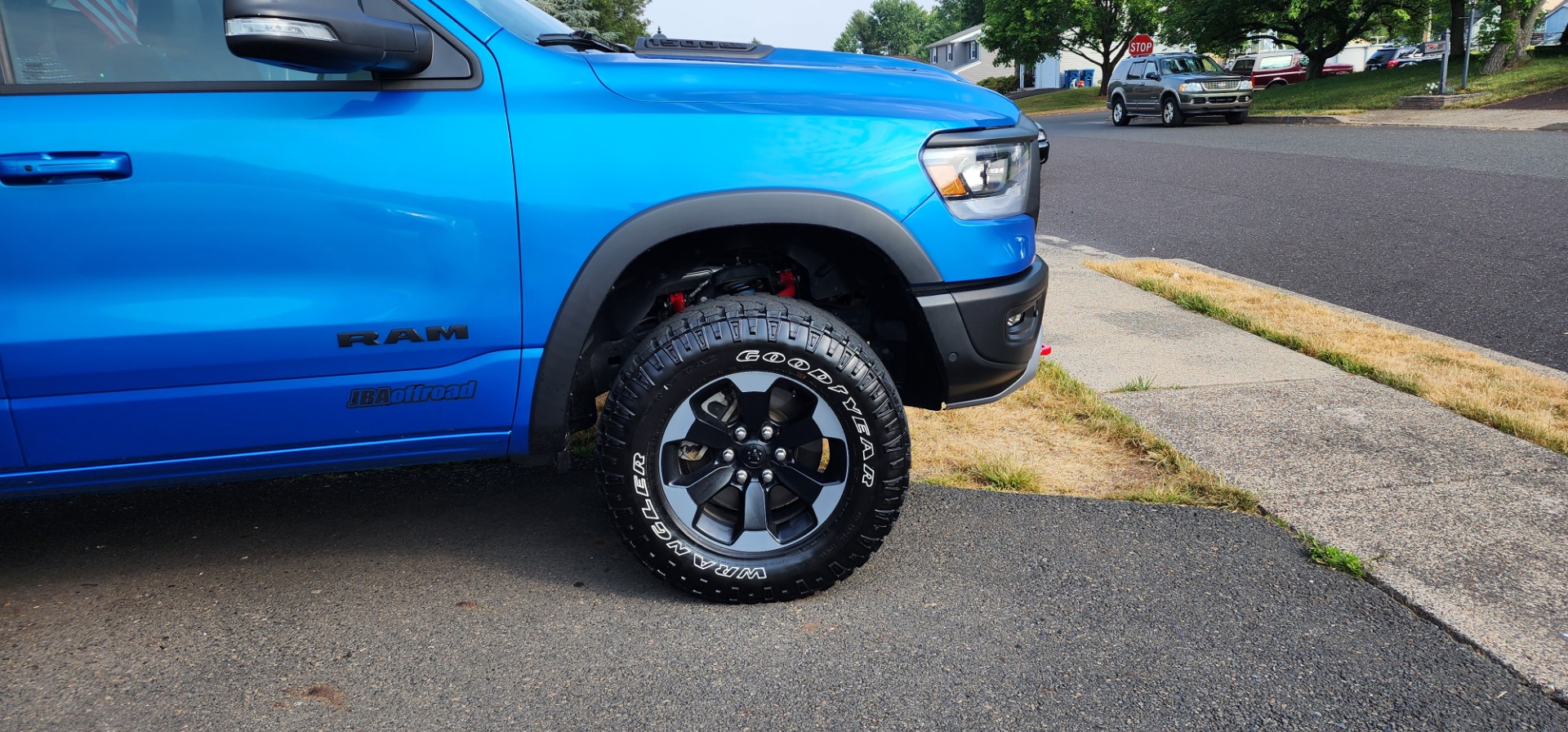

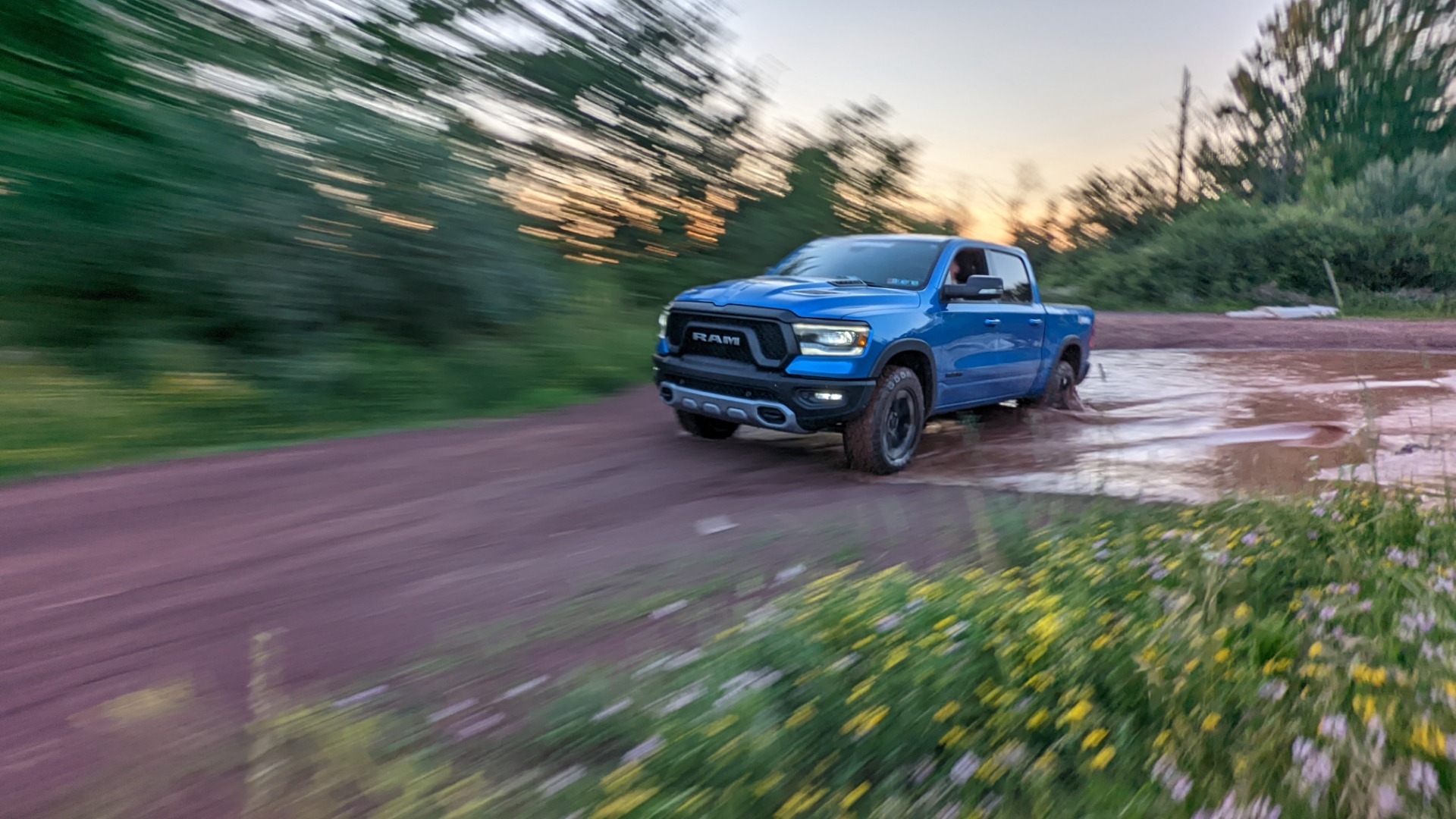

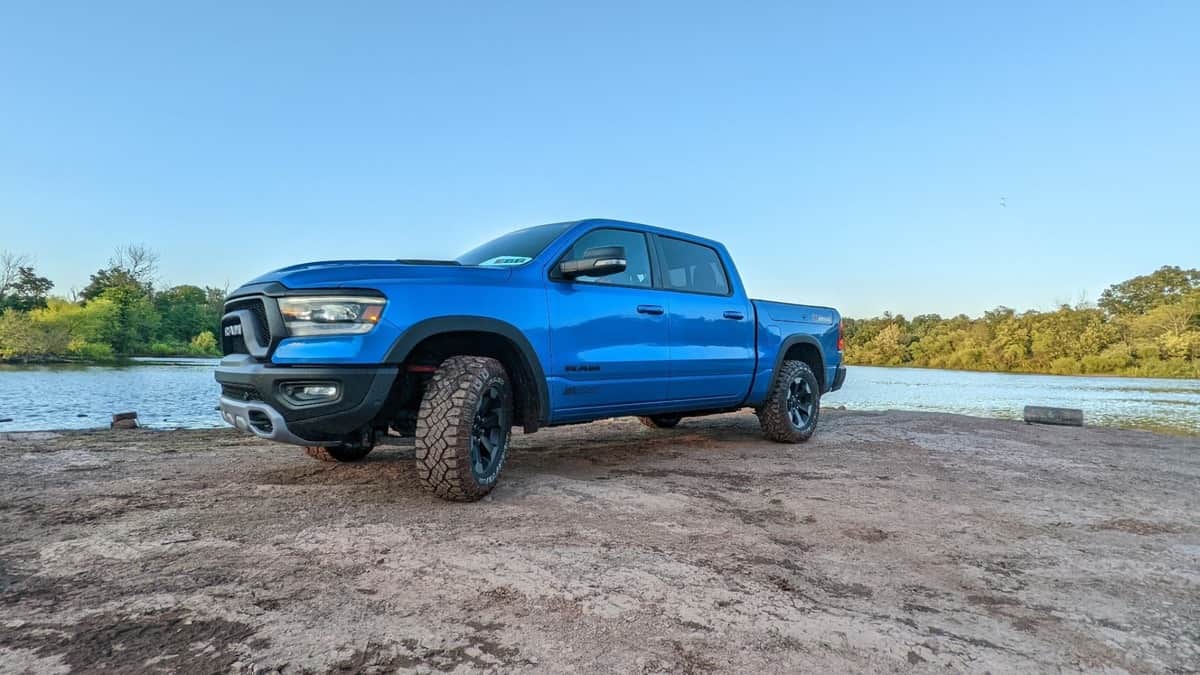

Ram Rebel 2020
- JBA Upper Control Arms
- Bilstein 6100 struts and springs
- Bilstein rear shocks
JBA Offroad Ram Rebel with Bilstien leveling kit

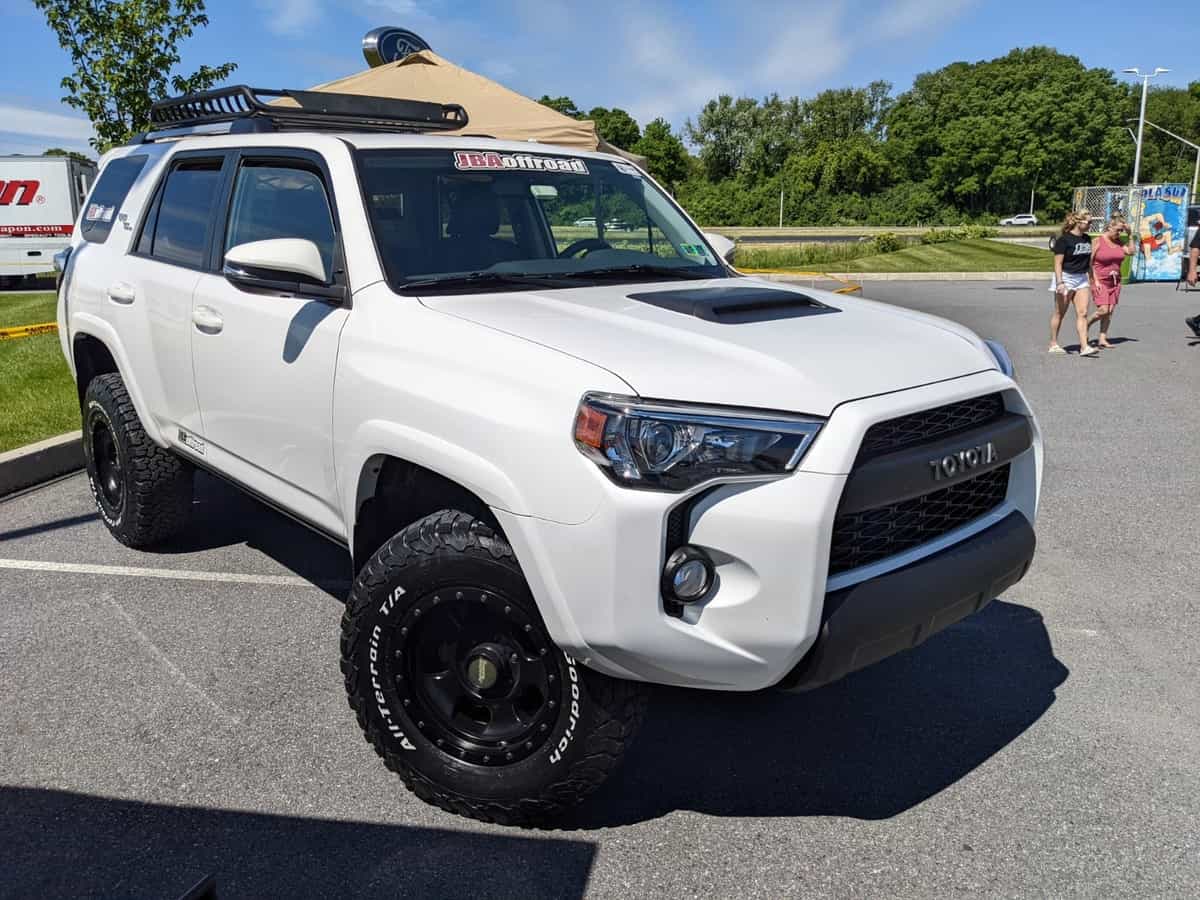

Toyota 4Runner 2019
2019 TRD Offroad

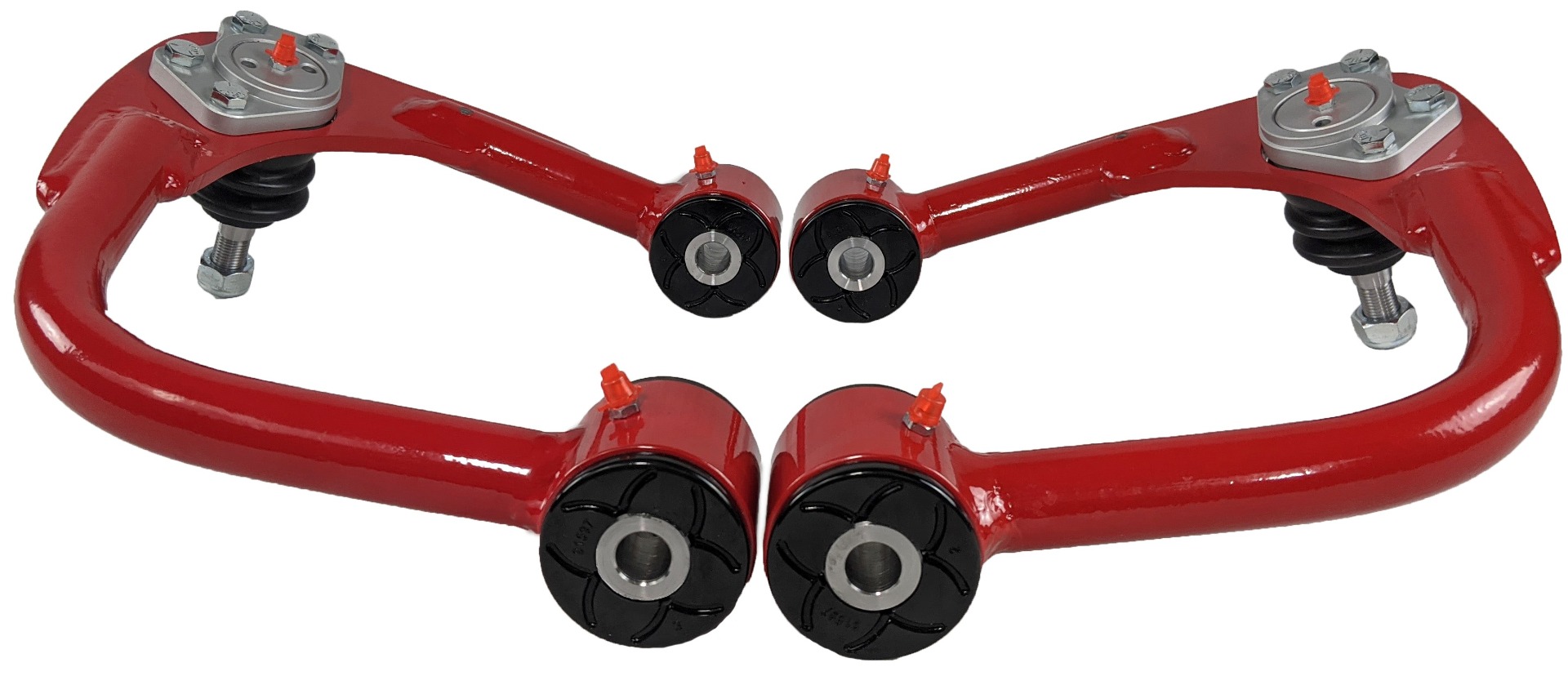

- JBA Upper Control Arms
- Bilstein 5100 struts
- Bilstein rear shocks
- 2.50" spring lift
- ROLA Roof Rack
- 285/70 R17 on 9" wide wheels with -12 offset

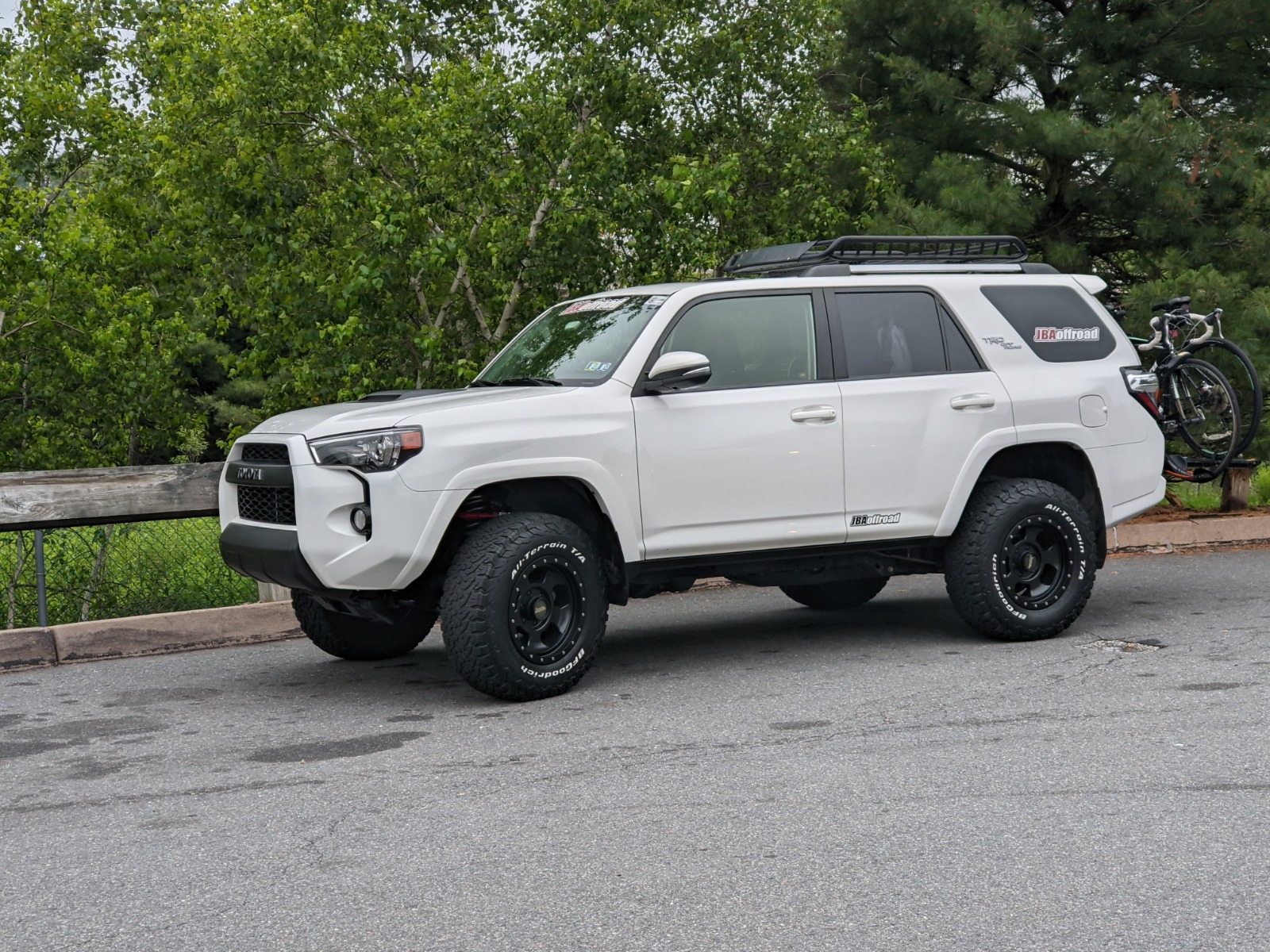

Toyota 4Runner TRD Offroad
2007 Jeep Liberty (KK)
Components list
- ORI struts 14" long
- Currie IFS center diff, Ford 9" with 5:13 gears
- RCV custom CV axles
- Howe Performance power steering box, pump, reservoir, and cooler
- Factory Jeep parts
- Front bearing hubs (WK)
- Cut down steering knuckles (WK)
- Tie rod ends (WK)
- Lower ball joints (WK)
- Front brakes and rotors (WK)
- Dana 44 (JK)
- JBA designed & manufactured parts
-
- Upper and lower control arms
- Front cradle drop
- Skid plates
- Rear three link components
Front Suspension
We started the build by clocking the transfer case to center the front drive shaft. We built a 10" cradle drop to hold the steering box, Currie diff, and the front suspension. The control arms are about 10" longer than the factory control arms.
Rear Suspension
The rear diff is a Dana 44 out of a JK with a factory electric locker and 5:13 gears. We built a custom 3-link mount, to do this we had to remove the fuel tank, muffler, and exhaust system. The fuel tank is a modified tank from an old Wrangler. We mounted the fuel tank where the spare tire was mounted from the factory.
Design, manufacturing, and testing equal over 900 man-hours of labor.

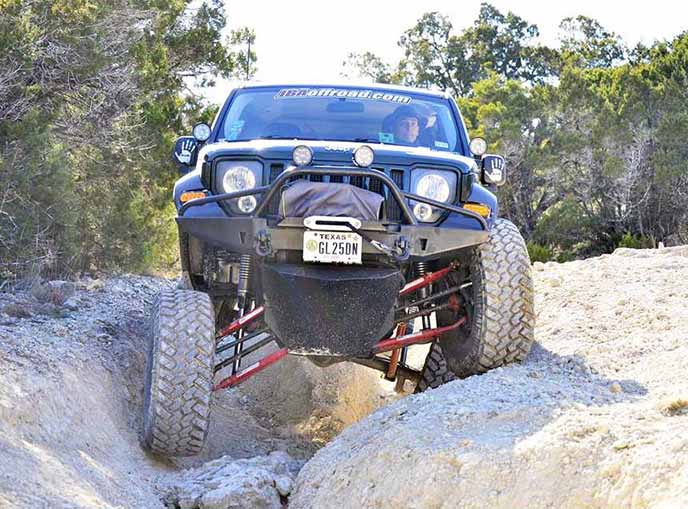

JBA Offroad one-of-a-kind Jeep KK Long Arm Build
Jeep Grand Cherokee 2007 (WK)
- JBA Upper Control Arms
- 4xGuard Belly Guard 4 [Discontinued 2019]
- 4xGuard Front Guard 4 [Discontinued 2019]
- 4xGuard Matrix Brush Guard Total Package [Discontinued 2019]
- 4xGuard Rear Diff Guard [Discontinued 2019]
- 4xGuard Rear Guard 2 [Discontinued 2019]
- 4xGuard Rear Slider [Discontinued 2019]
- 4xGuard Side Guard 2 [Discontinued 2019]
- AEV Electronic Geometry Recalibration (EGR Module)
- JBA Adjust-A-Strut 4" Lift kit [Discontinued 2019]
- B.F. Goodrich A/T Tires: 285/70R17 (1.25" spacers)
- ROLA Roof Rack
- Green Diesel Engineering (Hot Tune & ECO Tune)
- 3" Stainless Steel Exhaust System

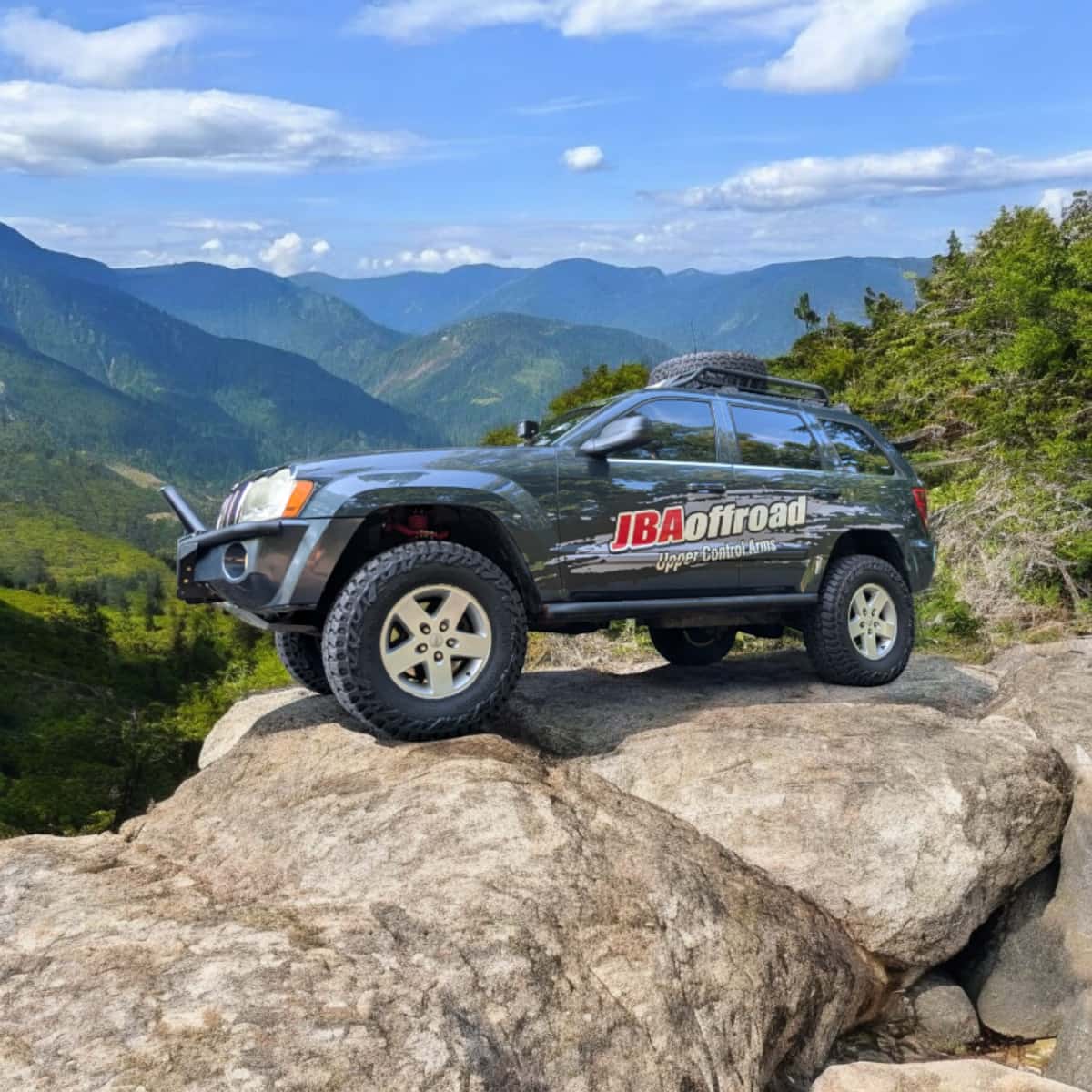

2007 Jeep Grand Cherokee (WK), 3.0L Turbocharged CRD (Diesel), Limited edition, QDII
Jeep Grand Cherokee 2005 (WK)
- JBA Upper Control Arms
- 4xGuard Belly Guard 4 [Discontinued 2019]
- 4xGuard Front Guard 4 [Discontinued 2019]
- 4xGuard Matrix Brush Guard Total Package [Discontinued 2019]
- 4xGuard Rear Diff Guard [Discontinued 2019]
- 4xGuard Rear Guard 2 [Discontinued 2019]
- 4xGuard Rear Slider [Discontinued 2019]
- 4xGuard Side Guard 2 [Discontinued 2019]
- 4xGuard CB Antenna Mount [Discontinued 2019]
- AEV Electronic Geometry Recalibration (EGR Module)
- B.F. Goodrich A/T Tires: 37 x 12.5 x 18 (with 1.5" spacers)
- Midland Micro Mobile-Portable CB Radio
- JBA Adjust-A-Strut Lift kit 8" (proto type) [Discontinued 2019]
- ROLA Roof Rack

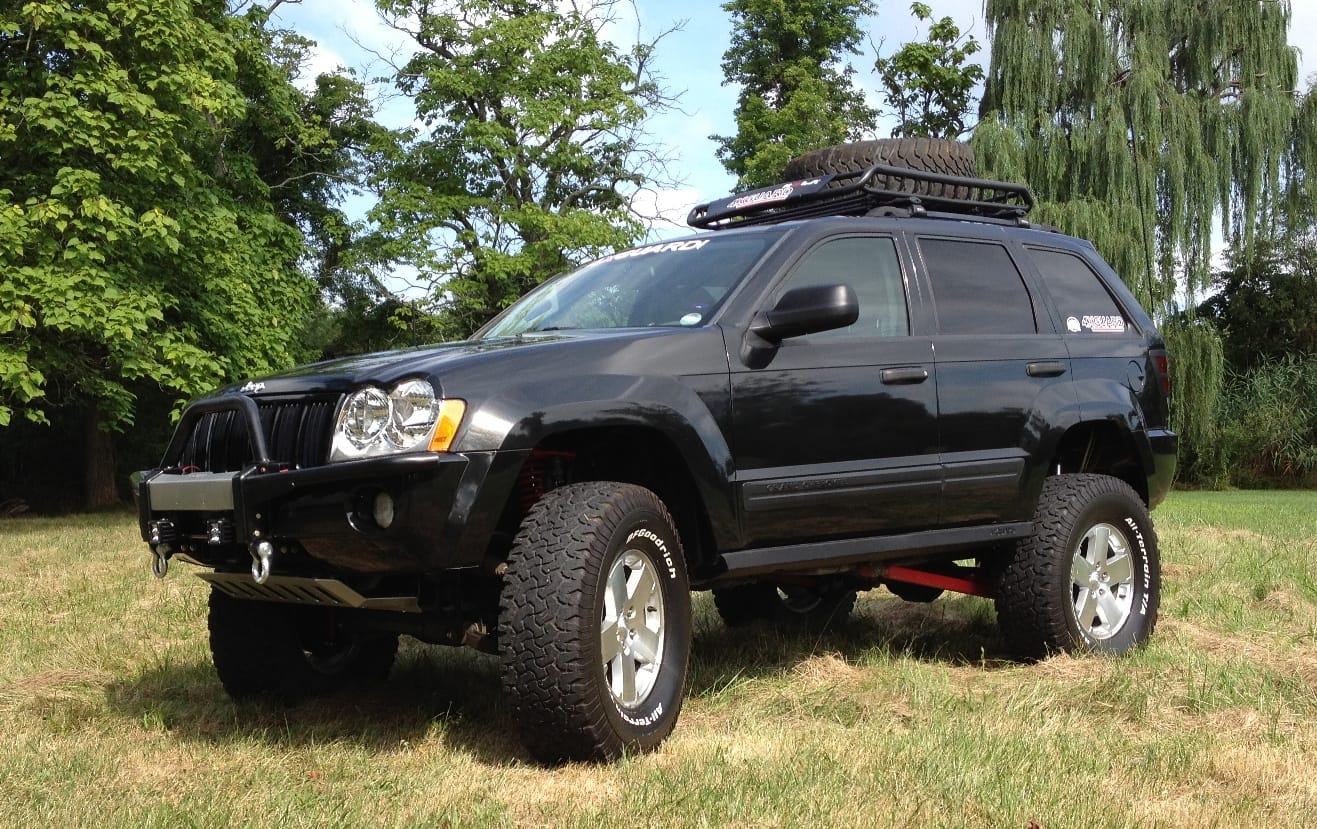

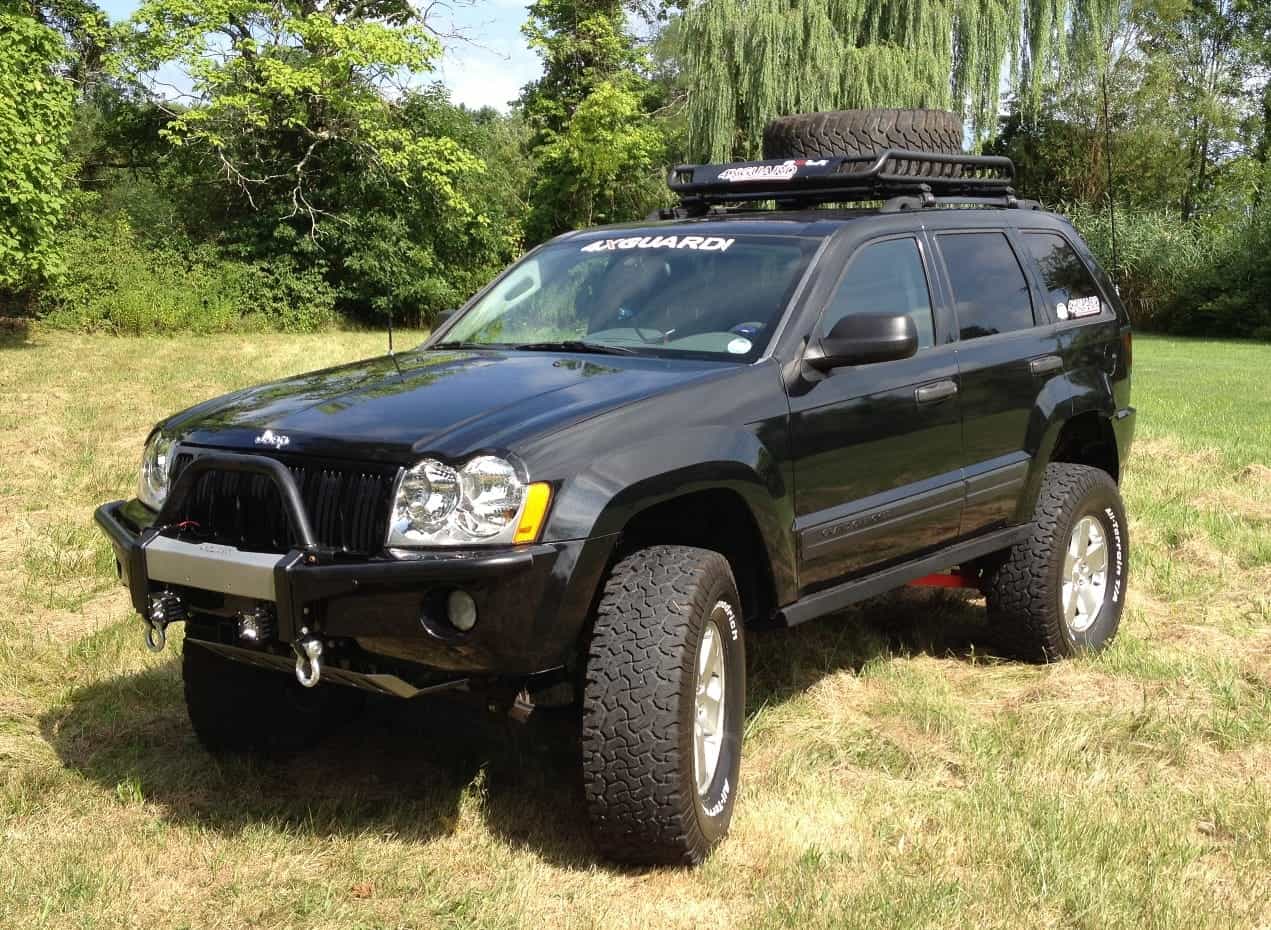

2005 Jeep Grand Cherokee (WK), 4.7L Gasoline, Laredo

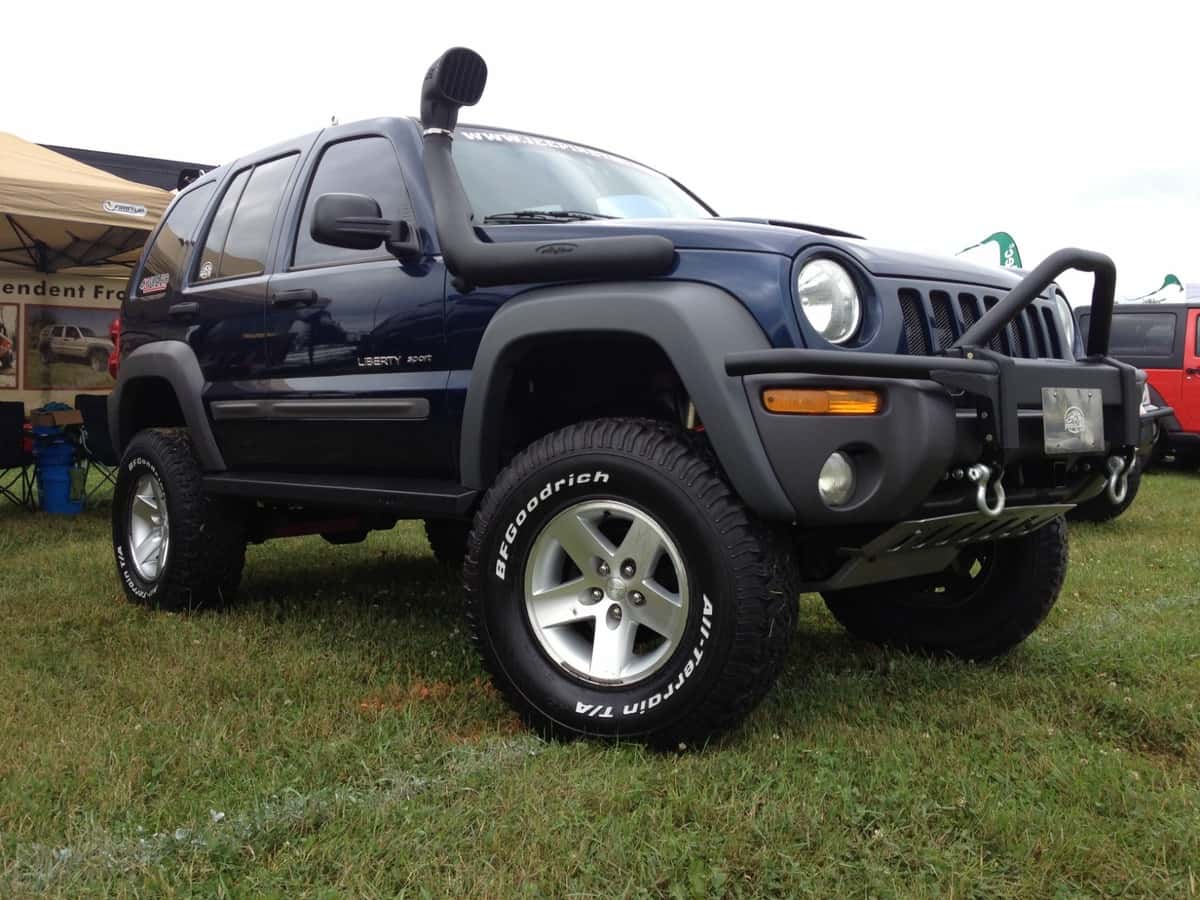

Jeep Liberty 2002 (KJ) 2002 Jeep Liberty (KJ) 3.7L Gasoline, Sport
- 4xGuard Belly Guard 4 [Discontinued 2019]
- 4xGuard Front Guard 4 [Discontinued 2019]
- 4xGuard Matrix Brush Guard Total Package [Discontinued 2019]
- 4xGuard Rear Diff Guard [Discontinued 2019]
- 4xGuard Rock Rails [Discontinued 2019]
- B.F. Goodrich A/T Tires: 285/75R16
- JBA 6" Adjust-A-Strut lift kit [Discontinued 2019]
- JBA Upper Control Arms
JBA Upper Control Arms for the Jeep Liberty
